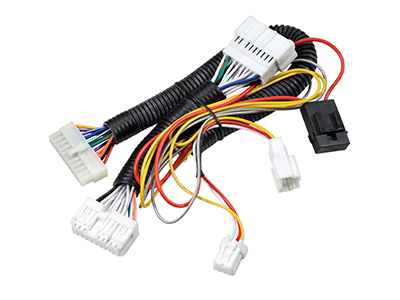

Wire harness machining center generally has its own production process to ensure the quality of wire harness; What are the production processes of the wire harness machining center?

1. Cut the wire, check the standard type of the wire, check the scale, and cut the wire that must be smooth and not damage the wire.

Two, peel, check whether the peeling mouth is smooth, core wire peeling scale is correct.

3. Tissue, check whether the pruning scale is correct, whether the pruning is smooth, and the core wire should not be damaged when the tissue is pruned.

(4) Peel off the endothelium, check whether the peel mouth is smooth and whether the peel scale is correct; Whether the copper wire is cut off by stripping the core wire? The insulator must not fall off during semi-stripping.

Five, when the tube is shortened, check whether the size and type of the tube are correct.

6. Welding, check whether the temperature of the tin furnace is correct, whether the core copper wire is sorted out before welding, whether there are forks, twists and turns, discounts and other appearances, whether there are copper wire forks, head, uneven copper wire, insulation skin burns and other appearances after welding. Then welding can not burn insulation, tin point to Wuxi tip, can not be welded, can not be welded.

Seven. Press the terminal, check whether the terminal and wire standards are correct, whether the terminal press has a horn, skew, and whether the insulation skin and core wire are too long or too short.

Eight, terminal piercing, check whether the connector, terminal type is correct, whether the terminal is damaged, deformed and other appearances whether the terminal has insertion, insertion error, insufficient piercing and other appearances.

9. Wire crimping, check the connector type, wire direction, whether the core wire is damaged, exposed copper, burned, and whether the crimping is in place.

Ten, blow the shortening tube, check the shortening of the shortening tube, and the insulation skin can not be burned.

11. Assemble the shell, check the shell for errors, damage, edges, etc., absorb no leakage parts, and whether the screws are twisted and oxidized or loose.

12, label, ensure that the label content is correct, clear, no hyphenation.

13, tie, check the standard, color, direction of the tie, check whether there is a crack, loose situation.
